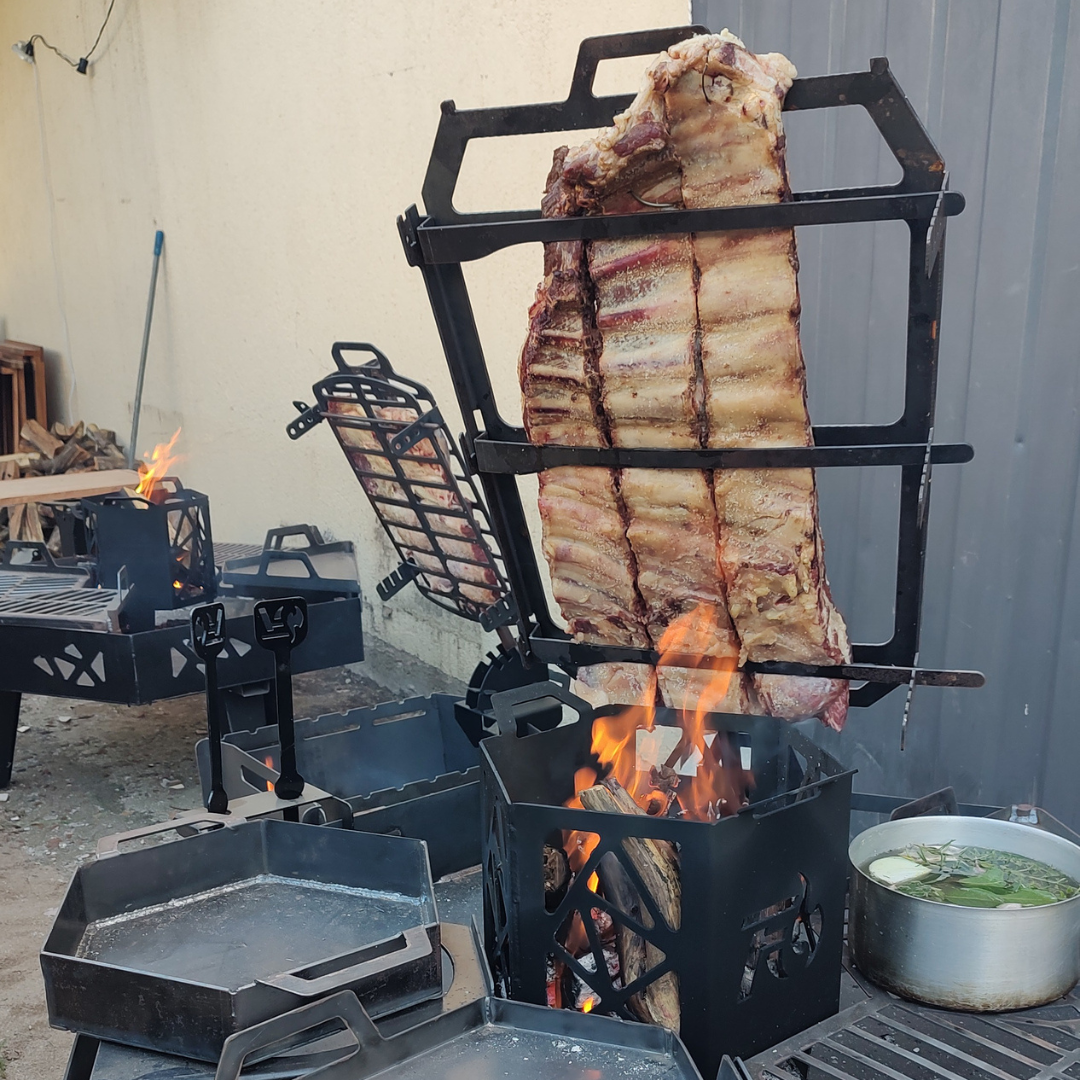

Outdoor Grill Combo, DXF+PDF Files for CNC

Outdoor Grill Combo, DXF+PDF Files for CNC

 4.8/5 based on 2567 reviews

⚙️ No need to design from scratch

🛠️ Reduce waste and costly mistakes

📐 Ready-to-use DXF and fabrication PDFs

💰 Create a premium product ready to sell
Métodos de pago seguros
Limited-time offer - don’t miss it
View full details

📦 What you get

• DXF files ready for CNC plasma or laser cutting
• PDF technical blueprints (bending and welding included)
• Material thickness recommendations
• Fabrication requirements (bending and welding)
• Instant download after purchase

🧩 Included parts

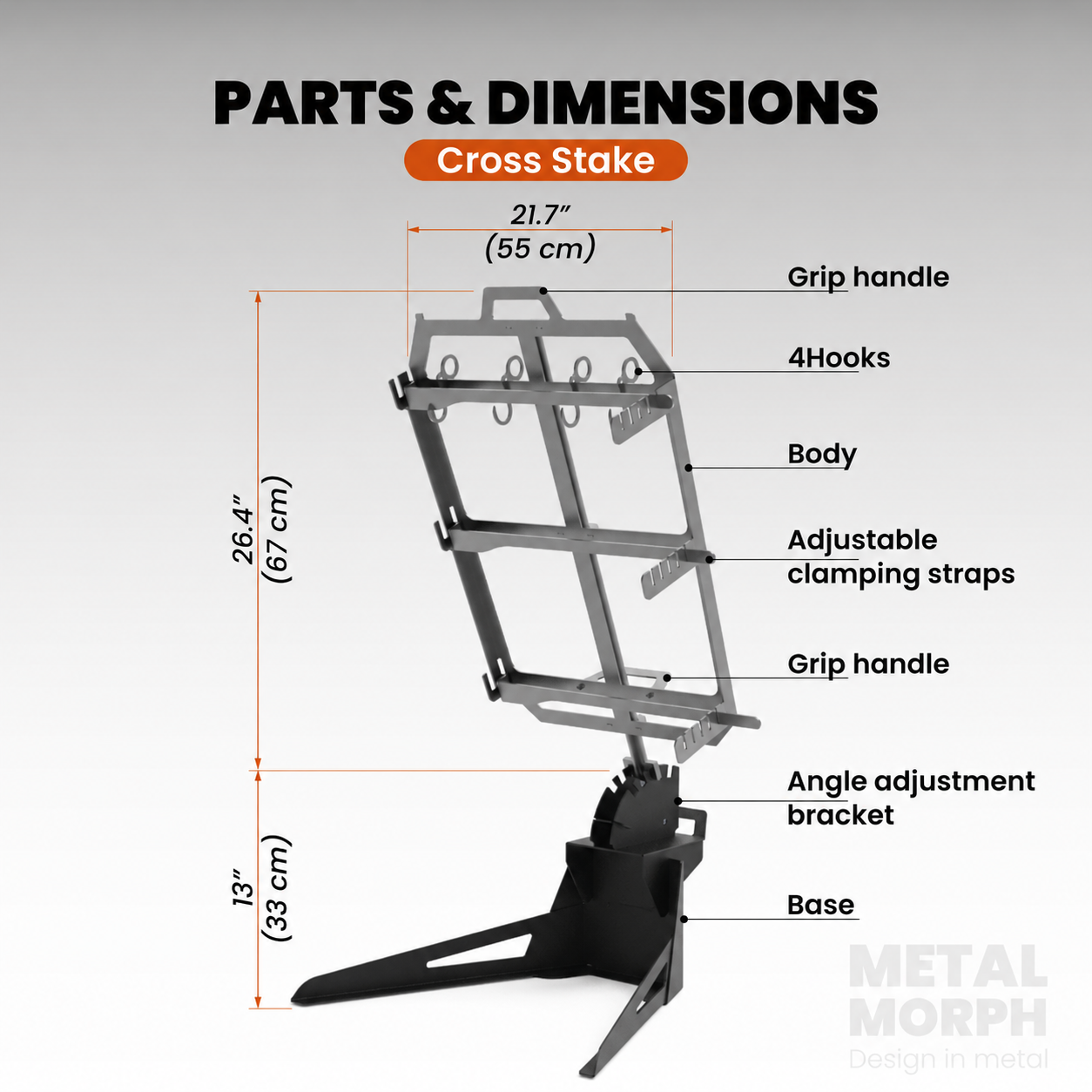

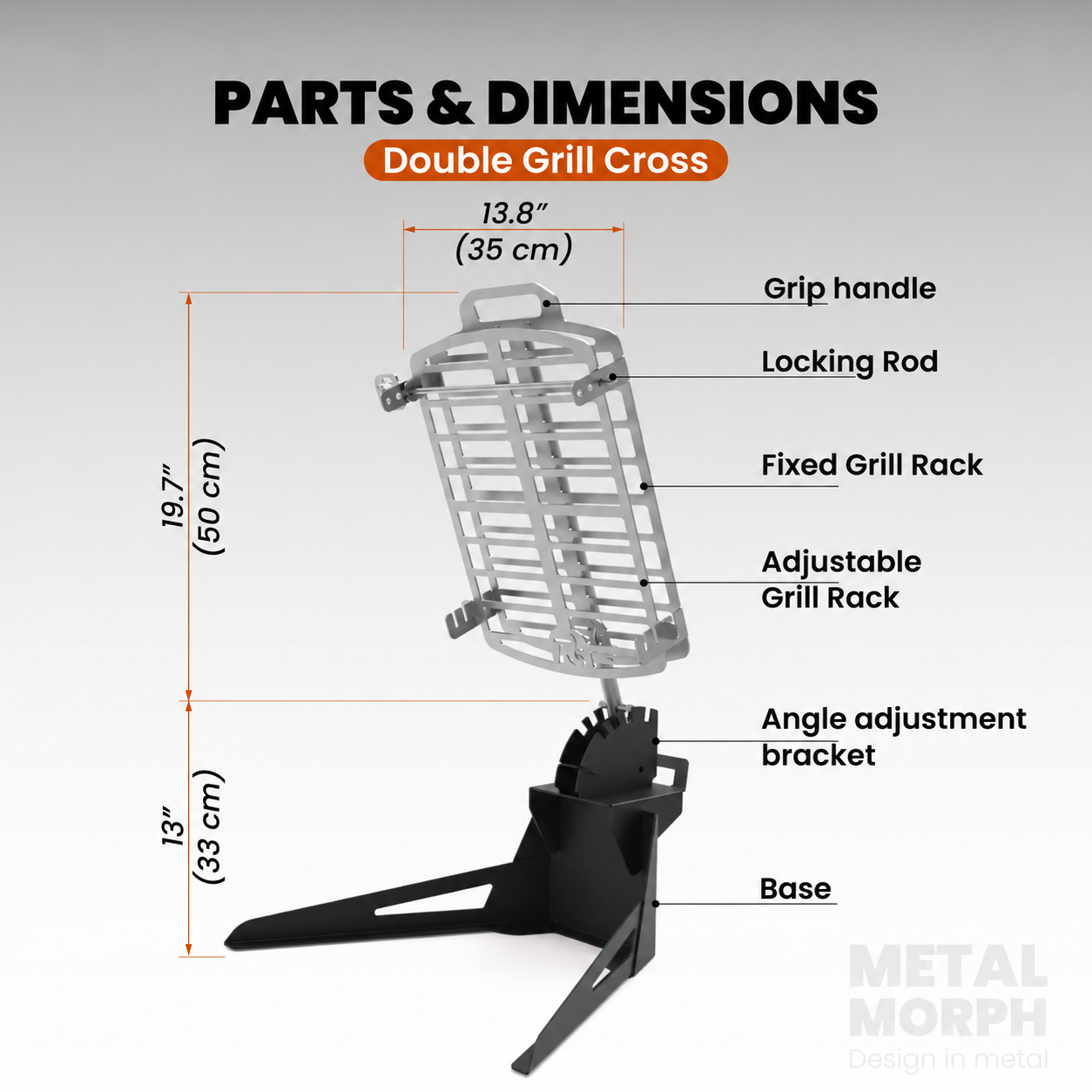

• Base.

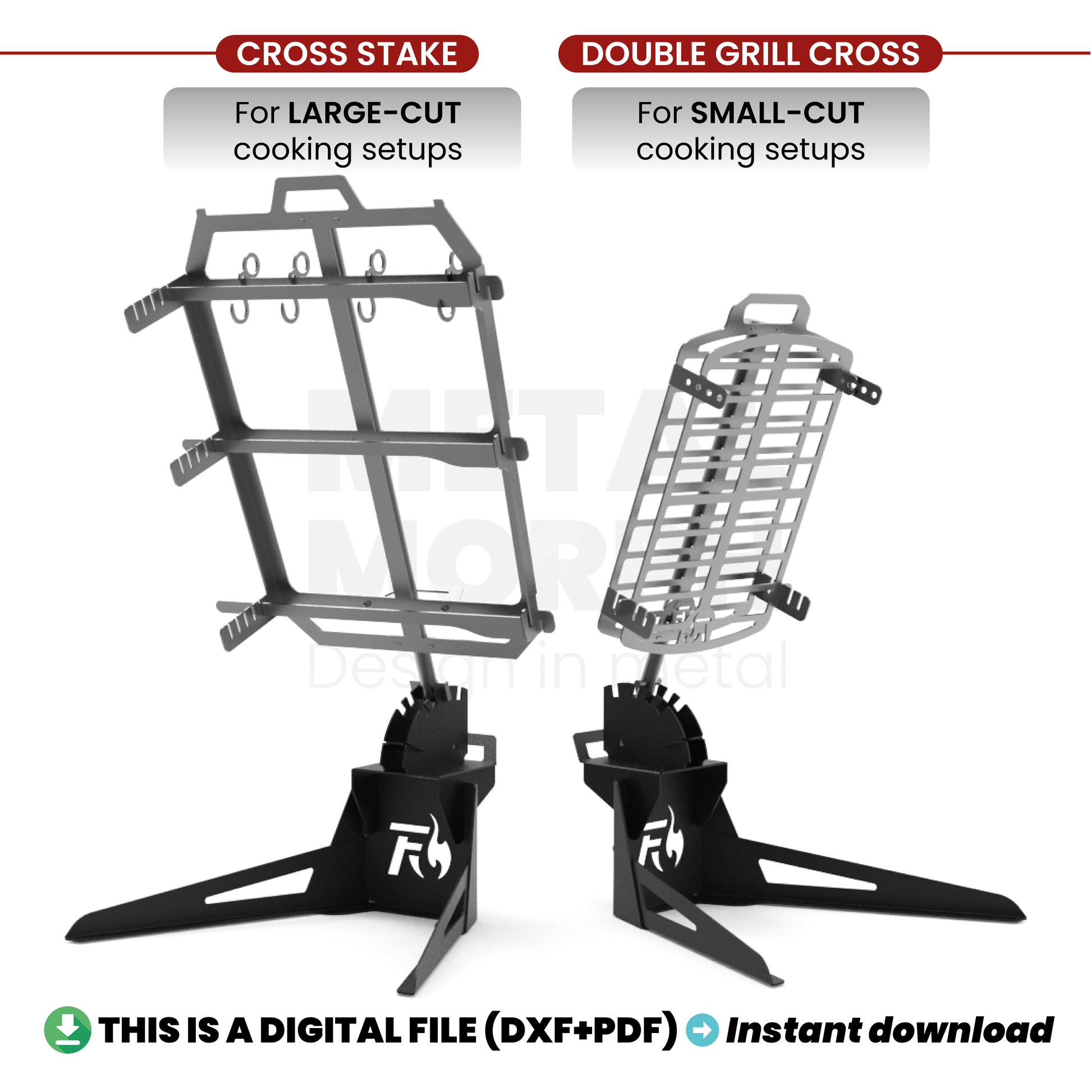

• Stake / Double Grill, or both.
• Angle adjustment bracket.

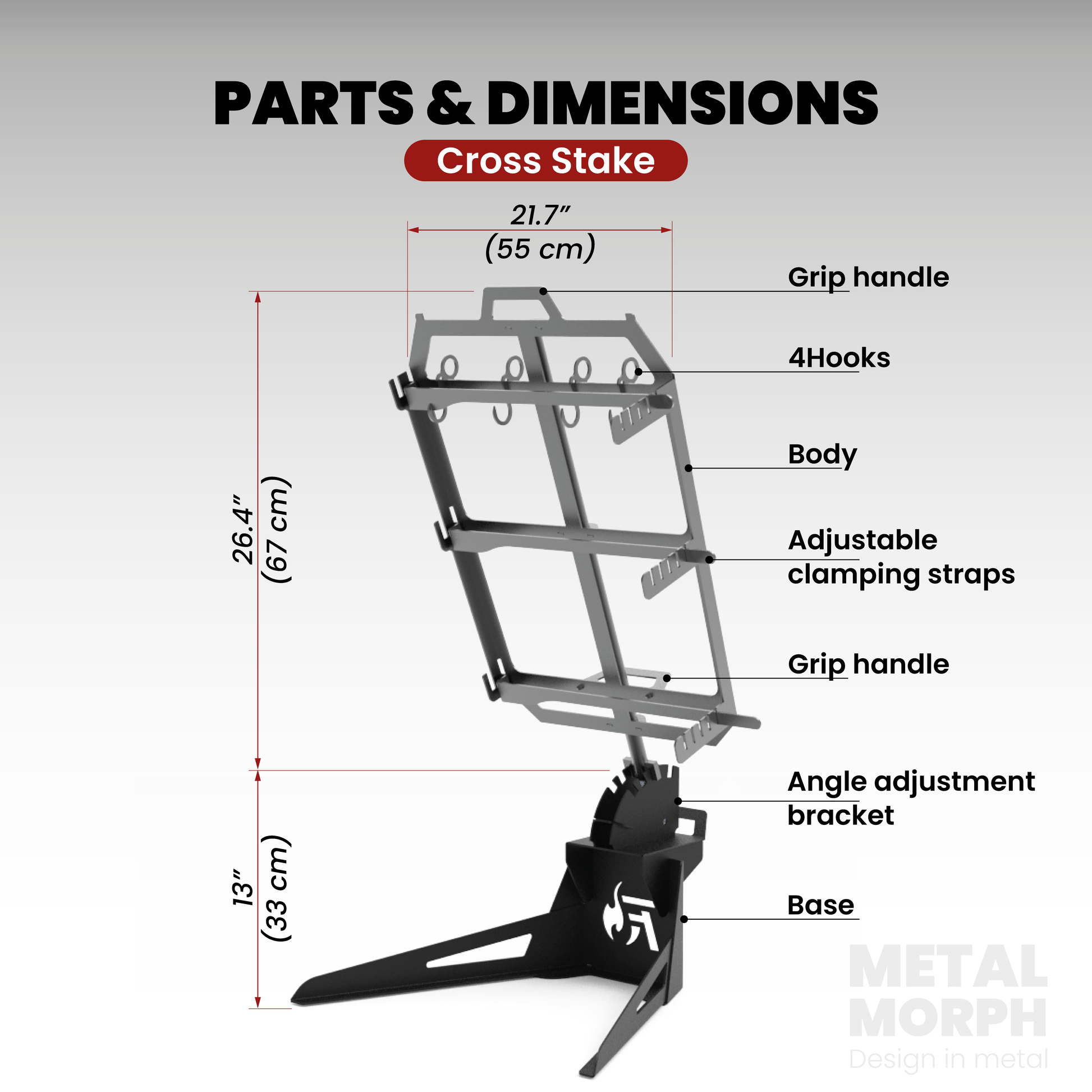

• 4 hooks (only in Cross Stake).
• Adjustable clamping straps (only in Cross Stake).

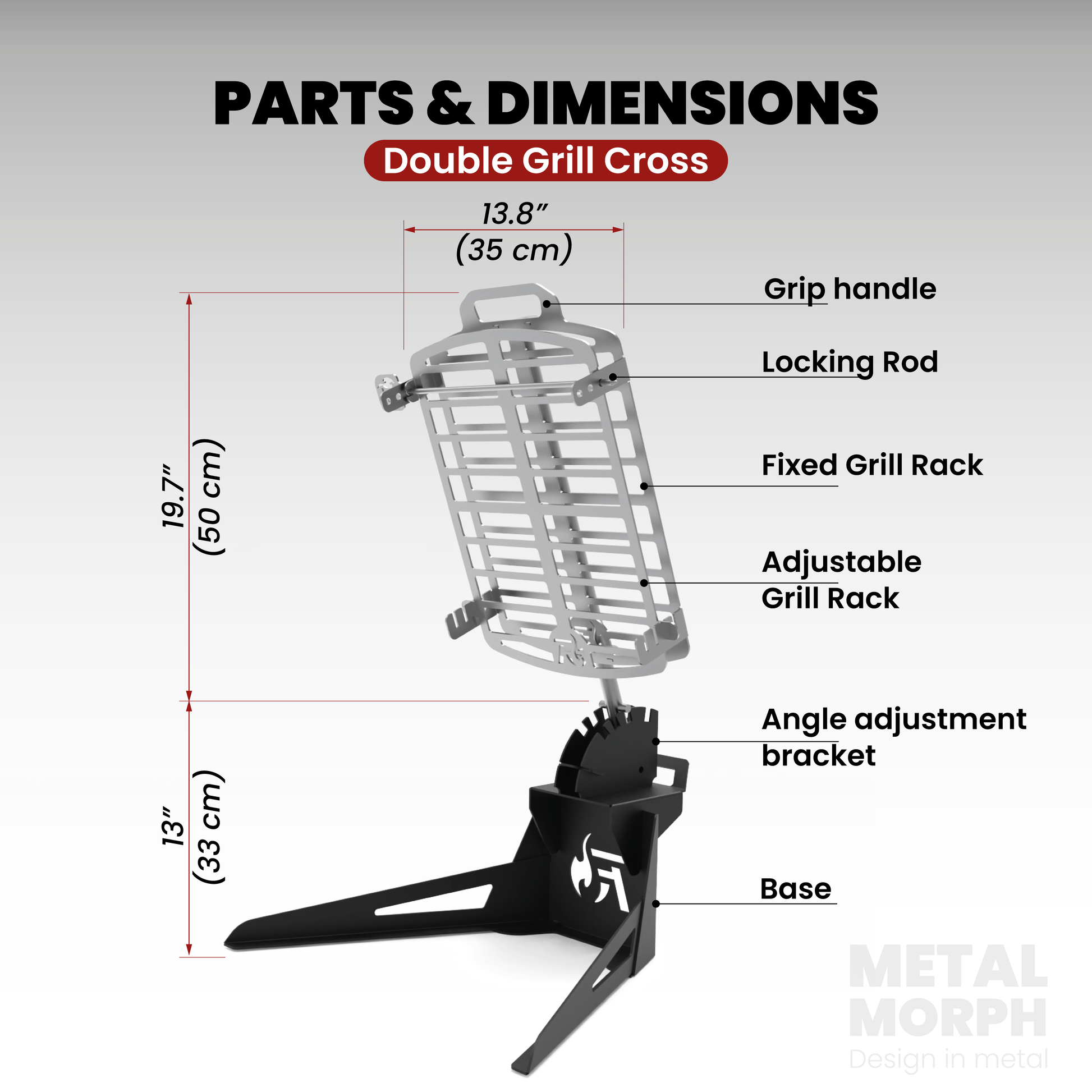

• Crossbar (only in Double Grill Cross).
• Charcoal Burner (only in the second offer).

👤 This project is for you if...

• You are a maker, fabricator, or metalworker.
• You want to build your own outdoor BBQ fire pit station.
• You run a workshop and want to offer a premium product to your clients.
• You enjoy building functional, high-impact metal projects.

This file set gives you everything you need to create a professional-grade fire pit.

Join the Builders




FAQ's

1️⃣ What materials do I need?

You’ll need 3.2 mm (1/8”) steel sheet.
Approximate quantities: 1,5 m x 80 cm.
Quantities may vary depending on layout and selected version.

2️⃣ Do I need my own CNC machine?

No. The files are made for CNC plasma or laser cutting, but you can take them to a local fabrication shop if you don’t have your own machine.

For assembly, you’ll need welding equipment and basic hand tools. The design can be bent using manual tools.

3️⃣ How do I receive my files?

After payment confirmation, your files are delivered digitally.
You’ll receive a download link by email. No physical item will be shipped.

4️⃣ Are the files CNC-ready?

Yes. The package includes CNC-ready DXF files for plasma or laser cutting.
Please check machine settings, kerf, nesting, and sheet size before cutting.

5️⃣ Do you offer support?

Yes. If you have questions before or after purchasing, you can contact us.
Small customizations, such as logo engraving or minor adjustments, may be available on request.




Easy download

After completing your purchase, you’ll get immediate access to your files through a download button on the order confirmation page. You’ll also receive an email with your download link.




Designed for real makers

If you experience any issue accessing, opening, or using the files, our team will personally assist you until everything works correctly.




How it works

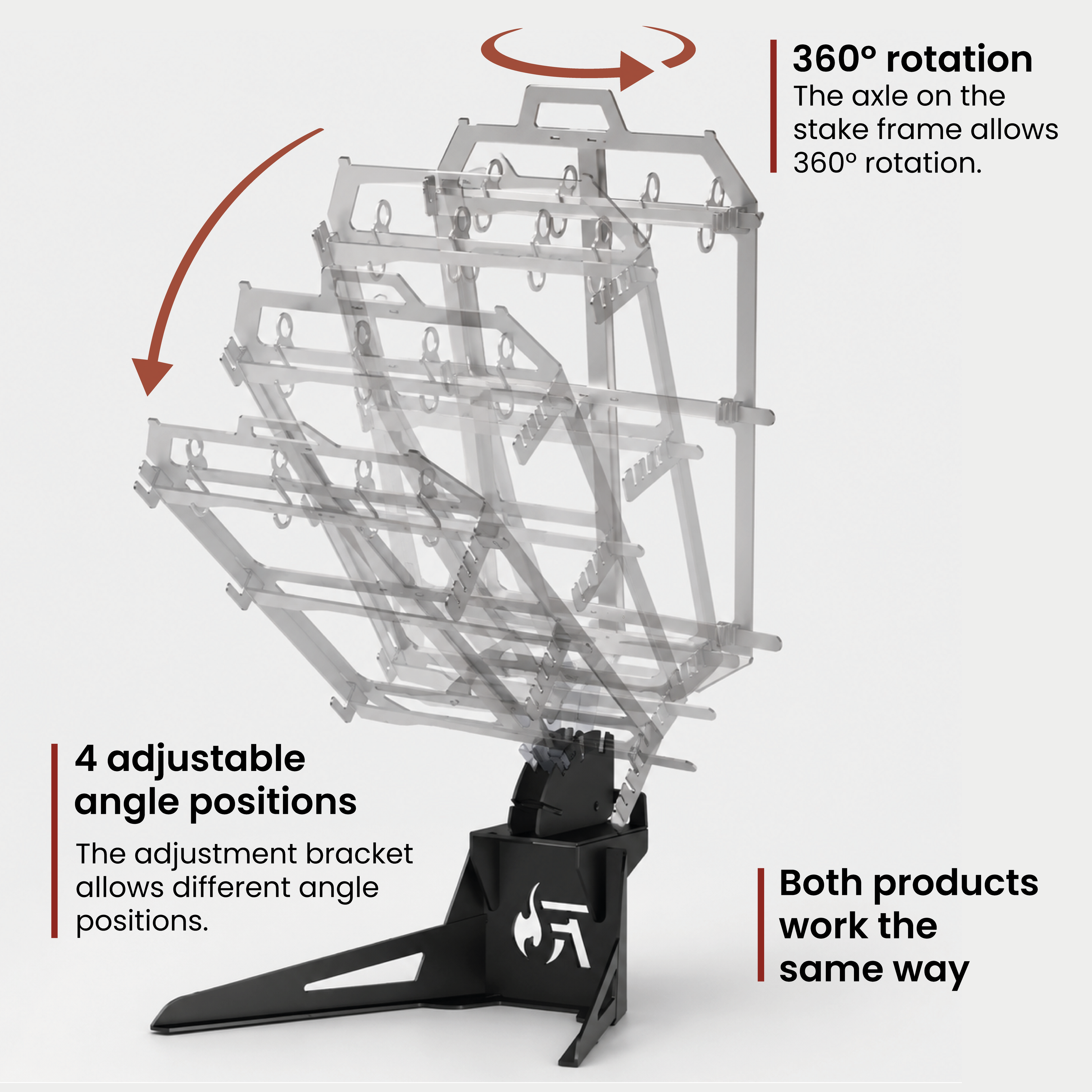

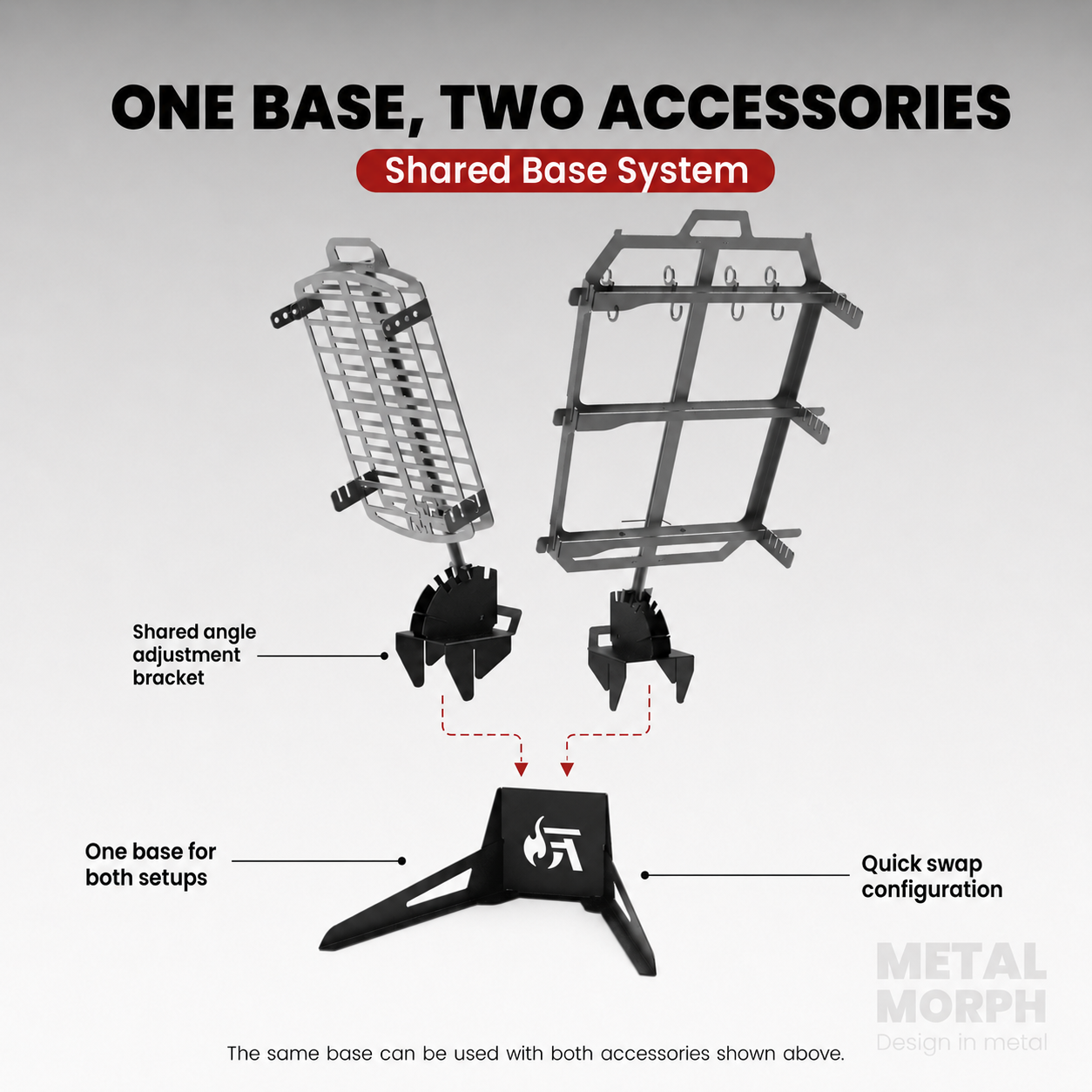

Build one base, offer more versatility. This modular design lets fabricators create an adjustable cooking system with 360° rotation, multiple angle positions, and compatible accessories.

Get more from your tools

Your tools were made to build more than one-off jobs. MetalMorph gives you ready-to-fabricate files so you can create premium metal products, expand your offer, and turn your skills into repeatable builds.

MetalMorph vs. Generic DXF files

  Others

Market-Validated Products

Professional Blueprints

Optimized Design

Technical Support

What Makers Are Saying
